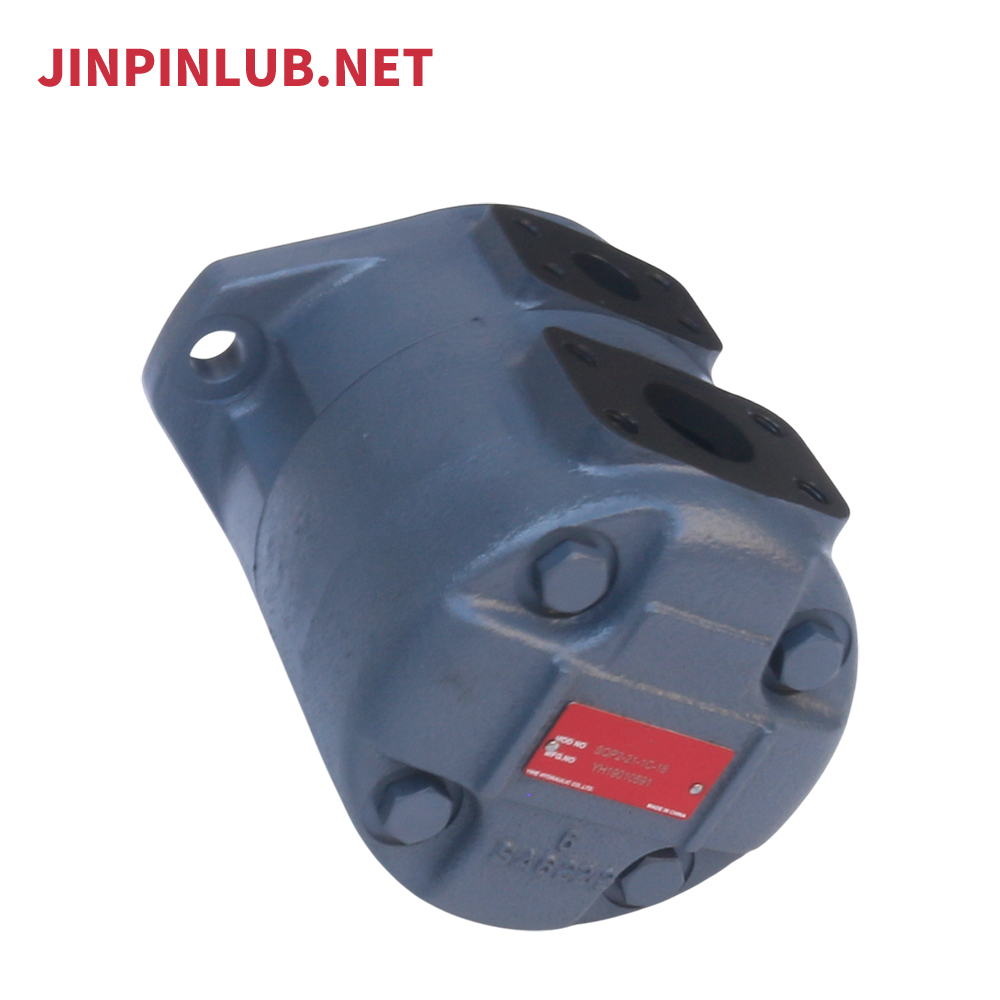

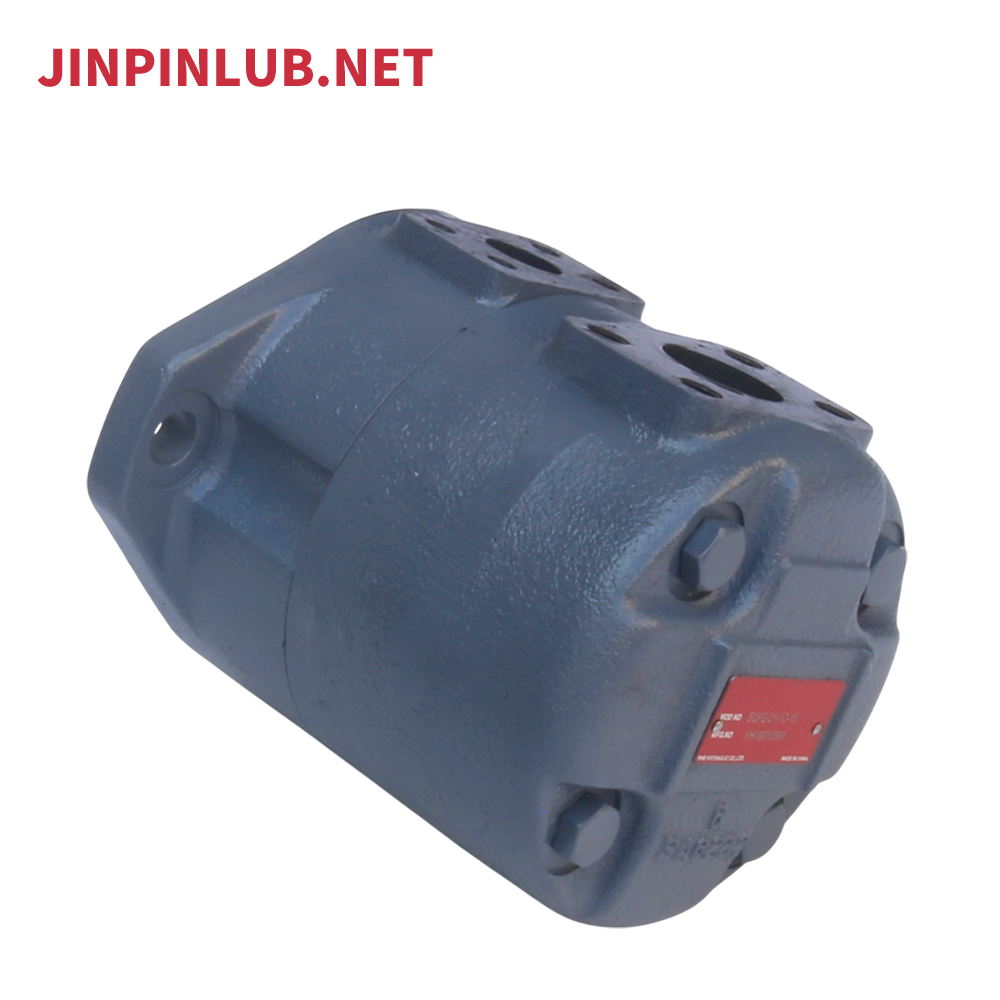

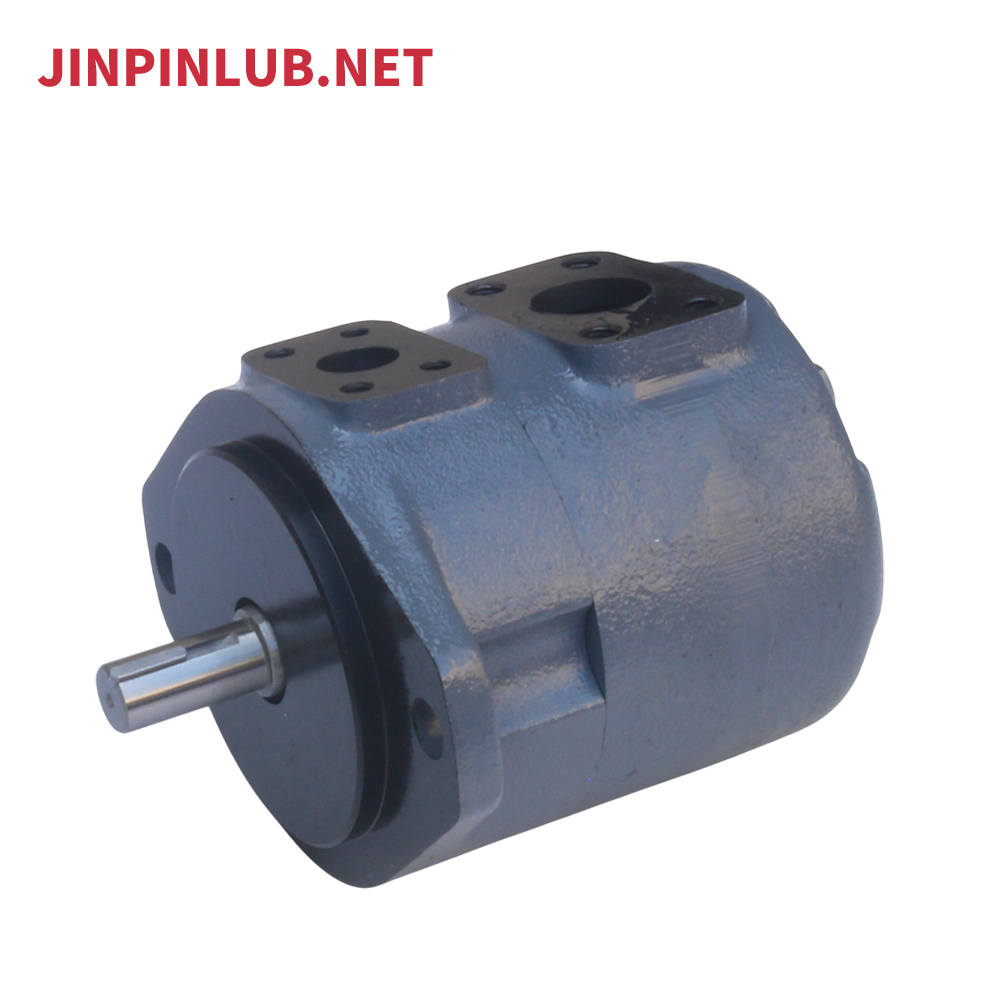

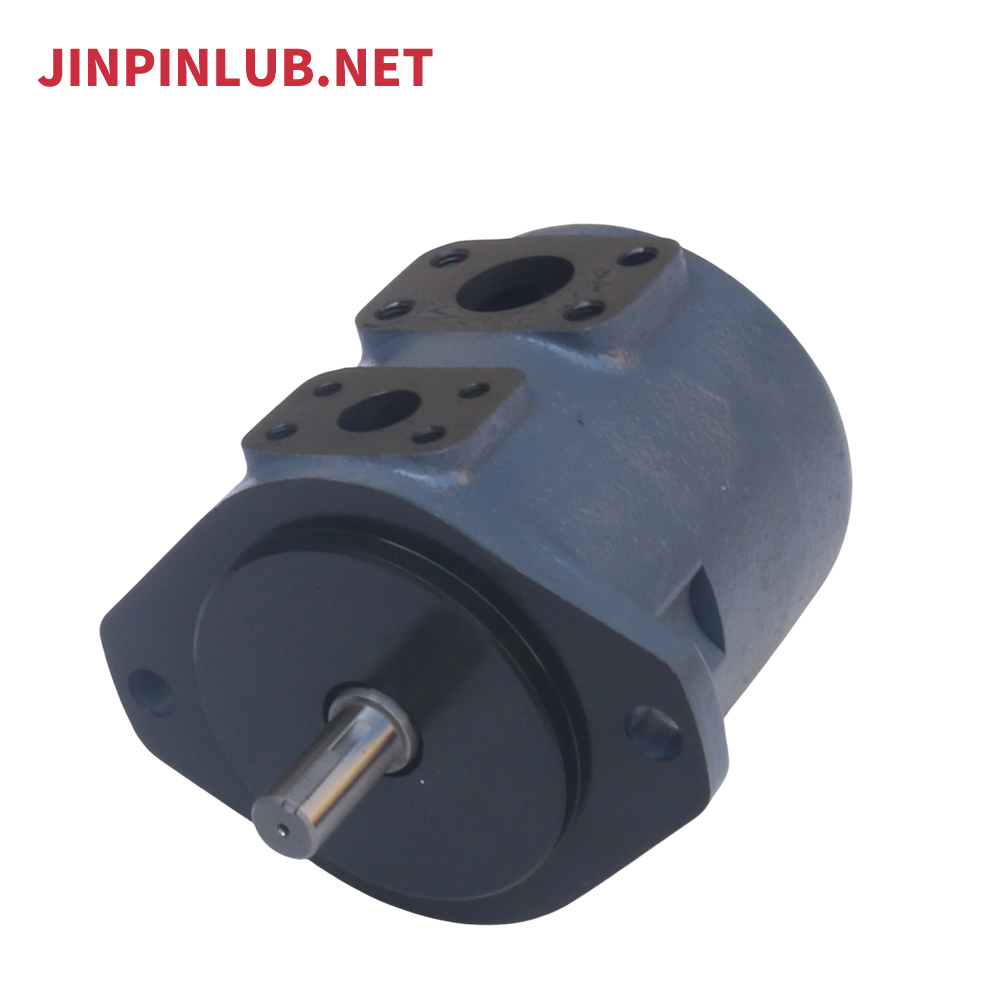

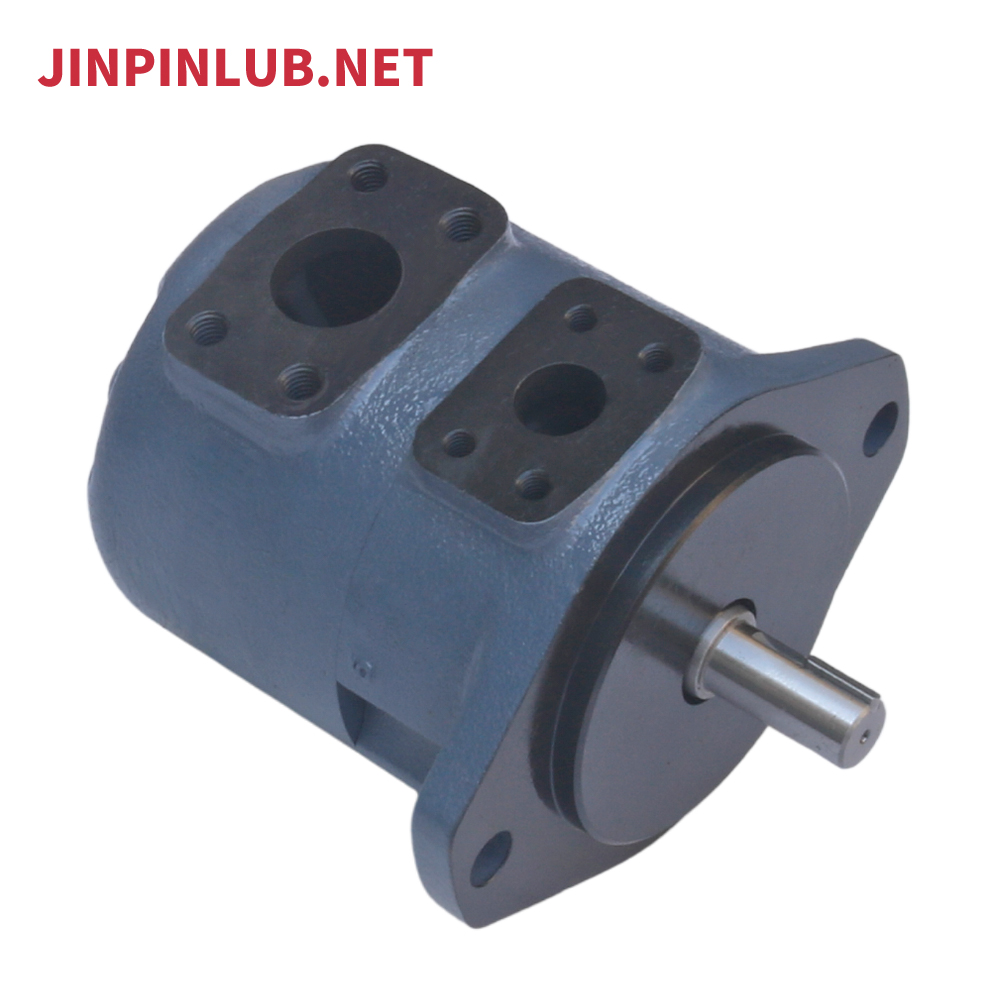

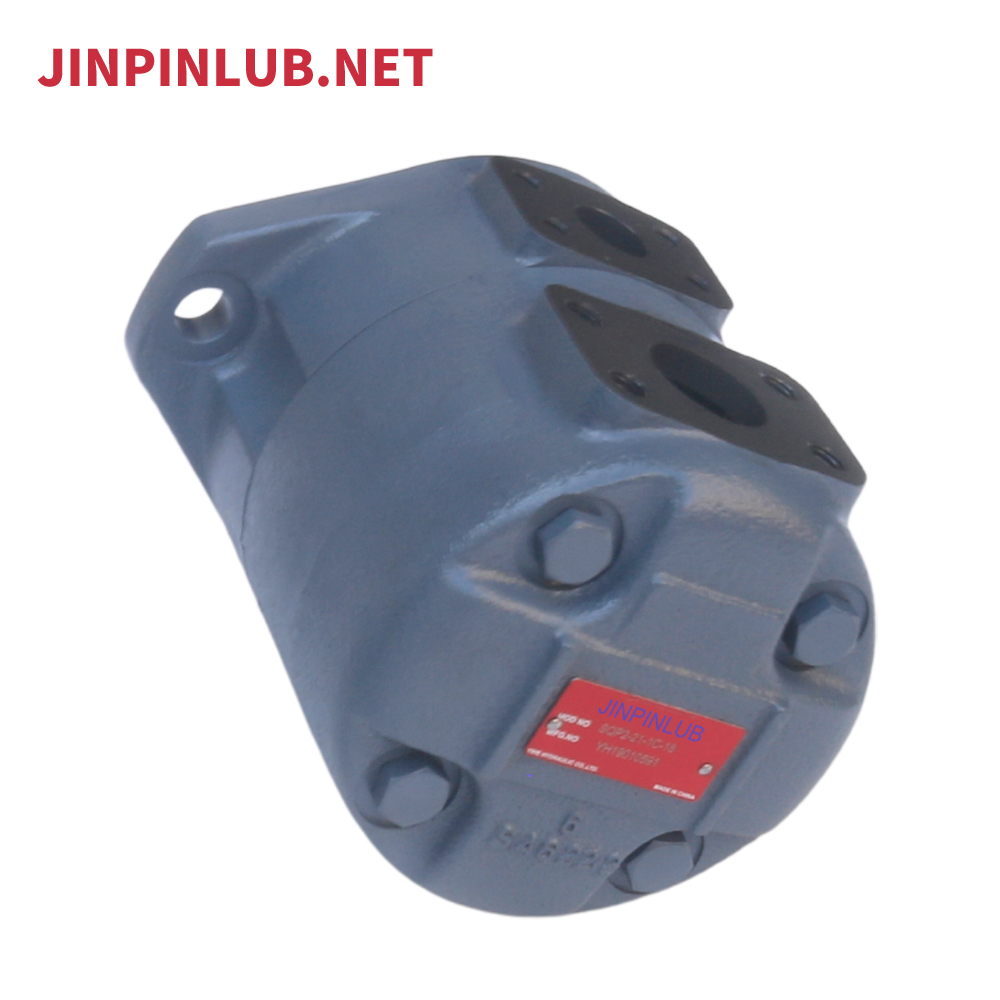

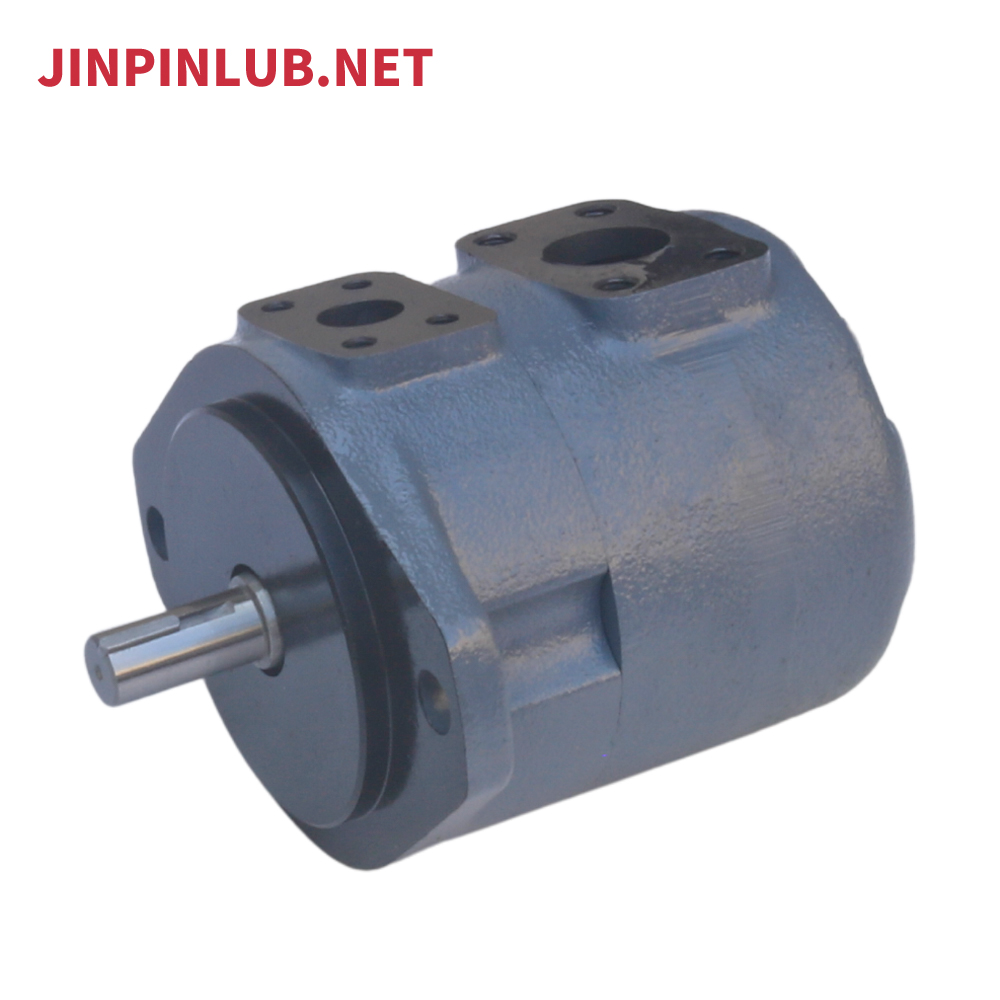

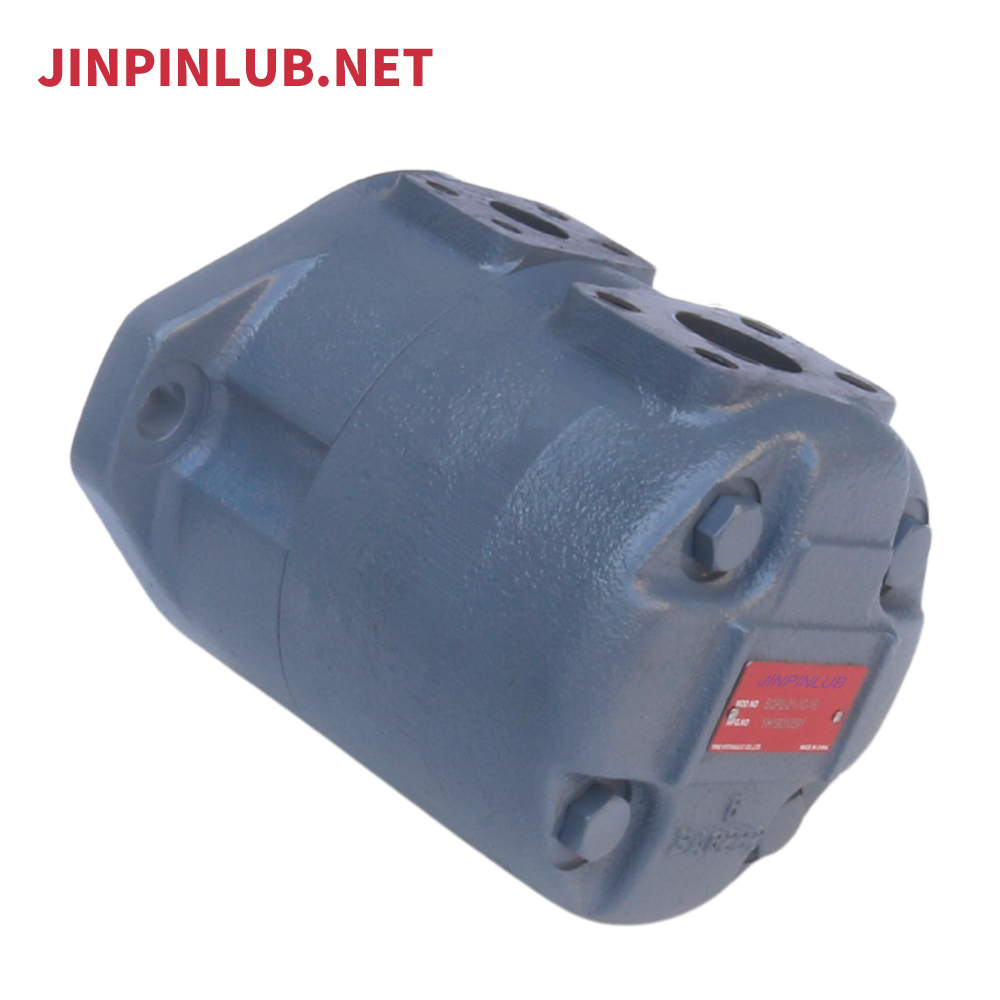

Tokyo Keiki single pump vane pump SQP2 series industrial hydraulic oil pump
Tokyo Keiki SQP2 is a low-noise fixed displacement vane pump suitable for medium and high pressure hydraulic systems. Its displacement range is 10.2 to 65.0 L/min (at 1000rpm, 0.7MPa), the maximum operating pressure can reach 17.5MPa, and the maximum speed is 1800rpm.
Description
Feature
The SQP2 series single vane pump from Tokyo Keiki is a volumetric pump designed for mid-range and high-pressure hydraulic systems.The SQP2 vane pump is modular in structure, has a compact pump body, and is easy to install and maintain.The main parts are made with high precision processing technology that can keep internal clearances optimally fitted to be volumetrically efficient with low leakage.
Regarding noise controlling, the SQP2 hydraulic pump uses different angle between blade and stator to optimise hydraulic pulsation as noise source.
Additionally, the pump utilises its internal flow channel buffer structure.also added thickening design of pump body shell can also be used for sound insulating and shock resisting, as well as prolonging its service life.
SQP2 hydraulic pump can also compatible with so many different hydraulic oil media such as mineral oil, phosphate ester and water glycol, which is strong against adaptablility.It has maximum working pressure in its standard configuration reaches 14MPa, and its speed rated ranges are also wide range suitable for continuously working conditions. SQP2 series is also unique in energy saving. The quantitative output characteristics simplify the system design and it reduces energy loss.
Advantages
1.The SQP2 industrial pump uses a parent-child blade design and technology that mitigates pulsation, and has effectively minimal hydraulic pulsation and operational noise levels.
2.A precision-machined rotor and blades are fit very tightly reducing internal leakage and improving the hydraulic system’s overall efficiency.
3.The pump casing is thickened to also help resist impacts and vibration – good in high load applications.
4.The pump core/packaging may be quickly assembled and disassembled and convenient for maintenance and replacement, which reduces delayed time.
5.Can be used with V series vane pump core which provides more versatility to replace spare parts and reducing inventory management efficiencies.
6.TheSQP2 vane pump can support many different types of hydraulic media including mineral oil, water glycol, phosphate ester, and are suitable for different industrial environments.
7.Has mature applications from injection molding machines to die-casting machines, machine tools, ships and other equipment with stable and reliable performance.
